Product DescriptionCompany Info.<>
- Model:
- Teros12
- Processing customization:
- No
- Measuring range:
- 0-70%VWC
- Maximum water potential load:
- 0-70%VWC
- Soil temperature measurement range:
- -40~+60℃
- Repeatability error:
- ± 0.03 m3/m3 or ± 3% VWC ( EC<8
- Overall dimension:
- 94 x 24 x 75 mm
- Measurement mode:
- Frequency 70 MHz
- Measuring stroke:
- 0-70%VWC
- Weight:
- 0.1 kg
- Applicable scope:
- Agriculture, forestry, meteorology, soil and scientific research

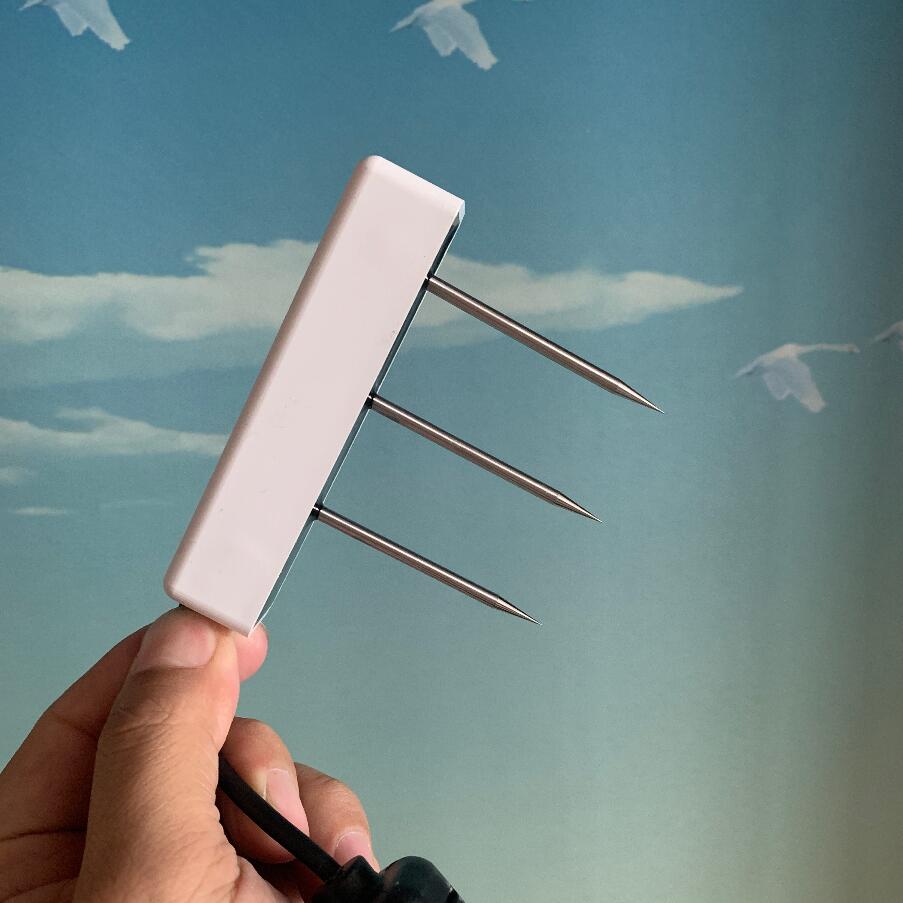

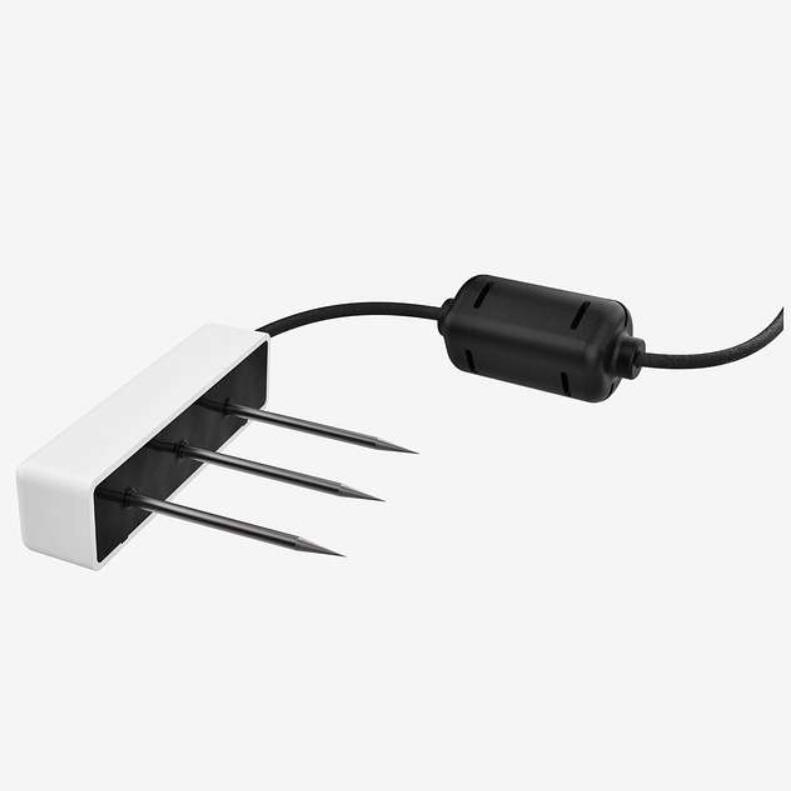

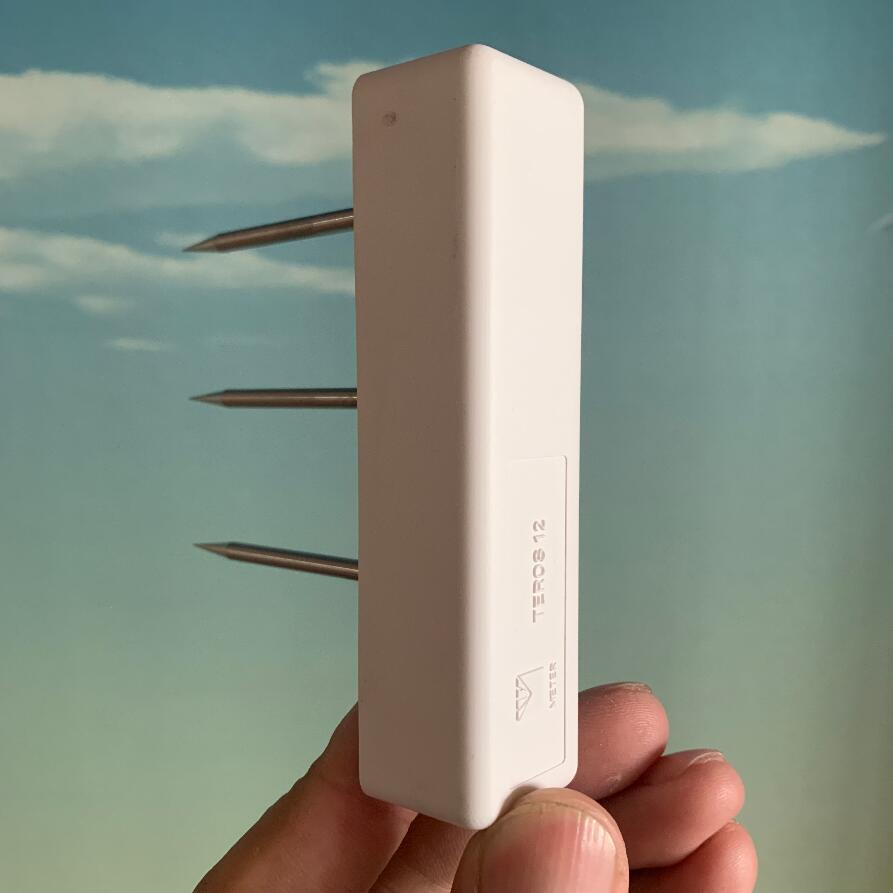

Meter Teros12 Teros 12 Soil moisture meter, soil moisture temperature conductivity sensorTEROS 12 is a soil three-parameter sensor provided by Metgroup, which monitors moisture, temperature, conductivity and other indicators in soil. It has accuracy, economy, ease of use and reliability. TEROS 12 sensor can be connected to EM50, ZL6, CR300, CR350 and other data acquisition devices, which can realize plug-and-play and data storage management of sensors, and provide customized services to meet the needs of customers.
Technical indicators;
Volumetric moisture content VWC Range: Mineral soil Calibration: 0-70%VWC
Non-soil medium calibration: 0-100%VWC
Resolution: 0.1% VWC
Accuracy: Mineral soil:± 0.03 m3/m3 or± 3%VWC( EC<8dS/m);
Porous media:± 0.01~0.02 m3/m3 or± 1-2% VWC(after individual calibration)
Soil temperature range: -40~+60℃
Resolution: 0.1℃
Accuracy:± 1℃@-40 ~ 0℃;± 0.5℃@0~60℃
Apparent dielectric constantε a Range: 1(air) - 80(water)
Resolution:0.1ε a@1-20;< 0.75ε a@20 -80
Accuracy:± 1ε a@1-40(soil range);± 15%@40-80
Soil salinity range: 0~20dS/m(bulk)
Resolution: 0.001 dS/m
Accuracy:± (5%+0.01 dS/m)@0~10 dS/m ;± 8%@10~20 dS/m
Other parameters:
Measurement frequency: 70 MHz
Output: DDI serial port or SDI-12
size: 9.4 cm x 2.4 cm x 7.5 cm
Probe length: 5.5 cm
Working environment: -40 ~60 ℃
Cable length: standard 5m. Other lengths can be customized, * length up to 75m.
Connector type: 3.5mm earphone plug or bare wire connector
Measurement volume: 1010 cm ³
Measurement time: 25-50 ms (milliseconds)
Supply voltage (VCC) to GND: * Small 4.0 VDC; Typical: NA;* Large 15.0 VDC
Current: 25s Measurement period: * small 3.0; typical 3.6mA;* large 16.0mA; static waiting period: * small NA; typical 0.03mA;* large NA
Start-up time: DDI serial port: * small 80ms; typical NA;* large 100ms;SDI-12: * small NA; typical 245ms;* large NA
Compliance with standards: Production under ISO 9001:2015;EM ISO/IEC 17050:2010 (CE mark);2014/30/EU and 2011/65/EU; EN61326-1:2013 and EN55022/CISPR 22
Current: 25s Measurement period: 3.0~16.0mA, typical 3.6mA; static waiting period: typical 0.03mA
Start-up time: DDI serial port 80~100ms;SDI-12 typical 245ms
Compliance with standards: production under ISO 9001:2015 standards;
EM ISO/IEC 17050:2010 (CE Mark)
