• Product Description
    Company Info.
    Model:
    HD2003.1
    Processing customization:
    No
    Types:
    Digital type
    Measuring range:
    Orientation: 0~360° ; elevation angle: ±60°
    Measuring object:
    Wind image wind speed data
    Resolution:
    0.1°
    Wind speed:
    0~70m/s m/s
    Weight:
    1.5 kg
    Power source:
    12~30V DC

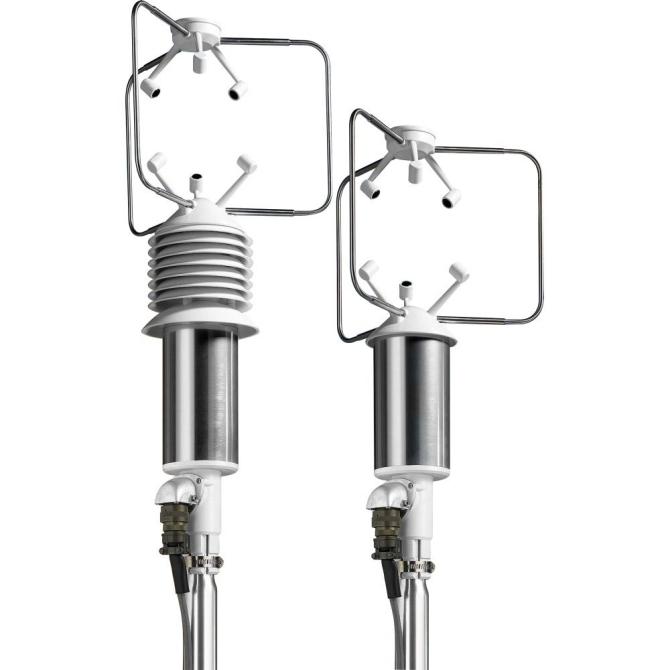

    HD2003and HD2003.1 Three-dimensional ultrasonic wind speed and direction sensors
    DeltaOHMprovides HD2003and HD2003.1 two three-dimensional ultrasonic wind speed and direction sensors, which can simultaneously measure wind speed, wind direction, Cartesian(Cartesian coordinates) of U axis, V axis and W axis speed, sound speed and sound temperature. Provide RS232, RS422 full-duplex digital serial protocol, or optional RS485Modbus half-duplex protocol;HD2003 in addition to expand the measurement of temperature, relative humidity and atmospheric pressure data, to meet the needs of customers, widely used in meteorology, military, tunnels, highways, climate, safety production, industrial construction, environmental protection, ecology, transportation and other fields.

    Main functions:
     Real-time monitoring of wind speed, wind direction, UWV
    speed, sound speed, sound temperature, etc.
     HD2003 can also measure temperature, relative humidity, atmospheric pressure
     5 analog voltage or current outputs
     Standard RS232/485 communication function
     Digital output rate settable
     Set average cycle, 1-60 seconds, 1-60 minutes
     Self-diagnosis and reporting
     Flexible and simple demo software that teaches you how to set the parameters you need
     Automatic North Pointing Function
     low power
     Heating options: ensure accurate measurements even in snow and ice; reference models: HD2003R and HD2003.1R

    Technical indicators:
    model HD2003.1 HD2003
    measured parameters Wind speed, wind direction, UVWaxis wind speed, sound speed, sound temperature Wind speed, wind direction, UVW axis wind speed, sound speed, sound temperature
    Temperature, humidity and air pressure
    Wind speed measurement range 0~70m/s 0~70m/s
    resolution ratio 0.01m/s 0.01m/s
    degree of accuracy 1% of readings 1% of reading
    wind measurement range Azimuth: 0~360; elevation angle: 60° Azimuth: 0~360; elevation angle: 60°
    resolution ratio 0.1° 0.1°
    degree of accuracy ±1° ±1°
    velocity of sound 300~380m/s 300~380m/s
    resolution ratio 0.01m/s 0.01m/s
    degree of accuracy 1% of readings 1% of readings
    tone temperature -40~+60 -40~+60
    resolution ratio 0.1 0.1
    degree of accuracy ±1 ±1
    compass 0~3600°/10° 0~3600°/10°
    resolution ratio 0.1° 0.1°
    degree of accuracy ±1° ±1°
    environment temperature not have Temperature Type Pt100   Range: -40~+60° C
    Resolution: 0.1CAccuracy: 0.2℃, 0.15%of reading
    relative humidity not have Relative humidity  H6100  Range: 5~98%.RH
    Resolution: 0.1%Accuracy: 2.5%@23
    barometric pressure not have Pressure Type Piezoresistance   Range: 600~1100mbar
    Resolution: 0.1mbar Accuracy:± 0.4mbar@20
    Temperature effect:± 0.8mbar between-40~+60° C
    Long-term stability: 1mbar@6months@20C
    extended output Analog: 0/4- 20mA, 0~1V/5V/10V, 1~5V
    Analog extension (AoXnd): 0/4-20mA, 0~5V/10V
    Analog output: 0/4- 20mA, 0~1V/5V/10V, 1~5V
    Analog Output Expansion (AoXnd): 0/4-20mA, 0~5V/10V
    * High resolution 14 bits 14 bits
    power supply 12~30V DC 12~30V DC
    power dissipation <2W-(normally: 110mA@15Vdc)
    <6W-with heater and ambient temperature-10C
    <2W-(normally: 110mA@15Vdc)
    <6W-with heater and ambient temperature-10C
    signal output RS232, RS422full duplex, RS485 ModbusRTUand AoXnd half duplex RS232, RS422full duplex, RS485 ModbusRTUand AoXnd half duplex
    Baud rate 9600~115200 9600~115200
    output frequency Output rate Normal mode (slow): 1~3600 seconds
    Digital Fast: Fixed 50Hz
    Output rate Normal mode (slow): 1~3600 seconds
    Digital Fast: Fixed 50Hz
    weight 1.5kg 2.1kg
    work environment -40~+60℃;0~100%RH; rainfall 300mm/h -40~+60℃;0~100%RH; rainfall 300mm/h

    Model: HD2003.1
    Measurement parameters: wind speed, wind direction, UVW axis wind speed, sound speed, sound temperature
    Wind speed measurement range: 0~70m/s
    Resolution: 0.01m/s
    Accuracy: 1% of reading±
    Wind direction measurement range: azimuth: 0~360° ; elevation angle:± 60°
    Resolution: 0.1°
    Accuracy:± 1°
    Sound speed: 300~380m/s
    Resolution: 0.01m/s
    Accuracy: 1% of reading±
    Sound temperature: -40~+60
    Resolution: 0.1
    Accuracy:± 1
    Compass: 0~3600°/10°
    Resolution: 0.1°
    Accuracy:± 1°
    Extended output: analog output: 0/4- 20mA, 0~1V/5V/10V, 1~5V
    Analog Output Expansion (AoXnd): 0/4-20mA, 0~5V/10V
    High resolution: 14 bits
    Power supply: 12~30V DC
    Power consumption:< 2W-(normally: 110mA@15Vdc)
             6< W-with heater and ambient temperature≥-10° C
    Signal output: RS232, RS422 full duplex, RS485 ModbusRTU and AoXnd half duplex
    Baud rate: 9600~115200
    Output frequency    Output rate Normal mode (slow): 1~3600 seconds
    Digital Fast: Fixed 50Hz
    Weight: 1.5kg
    Working environment: -40~+60 ℃;0~100%RH; rainfall< 300mm/h
