    Model:
    LPNET14
    Processing customization:
    No
    Import or not:
    Yes
    Measuring object:
    Net solar radiation intensity data

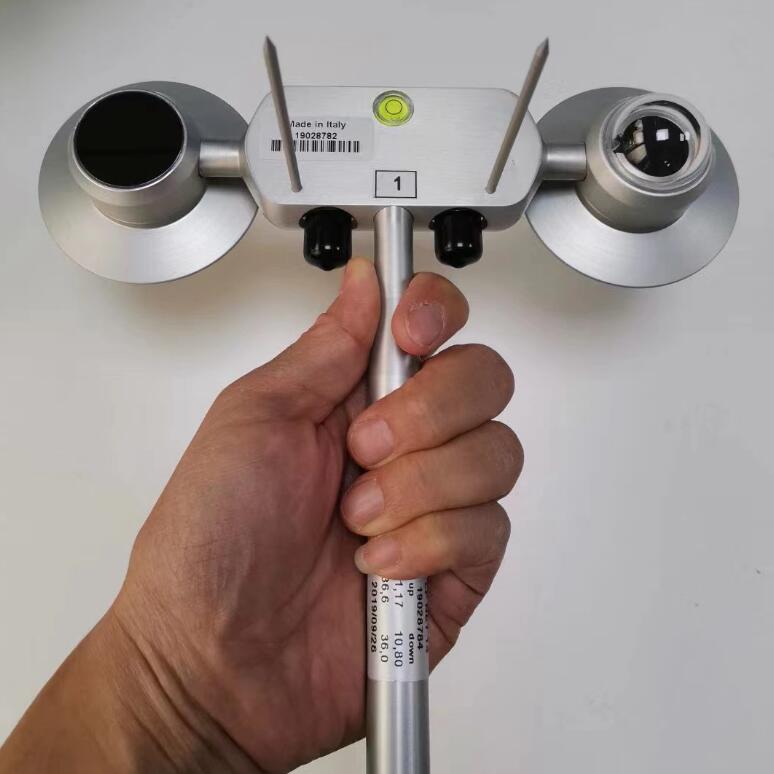

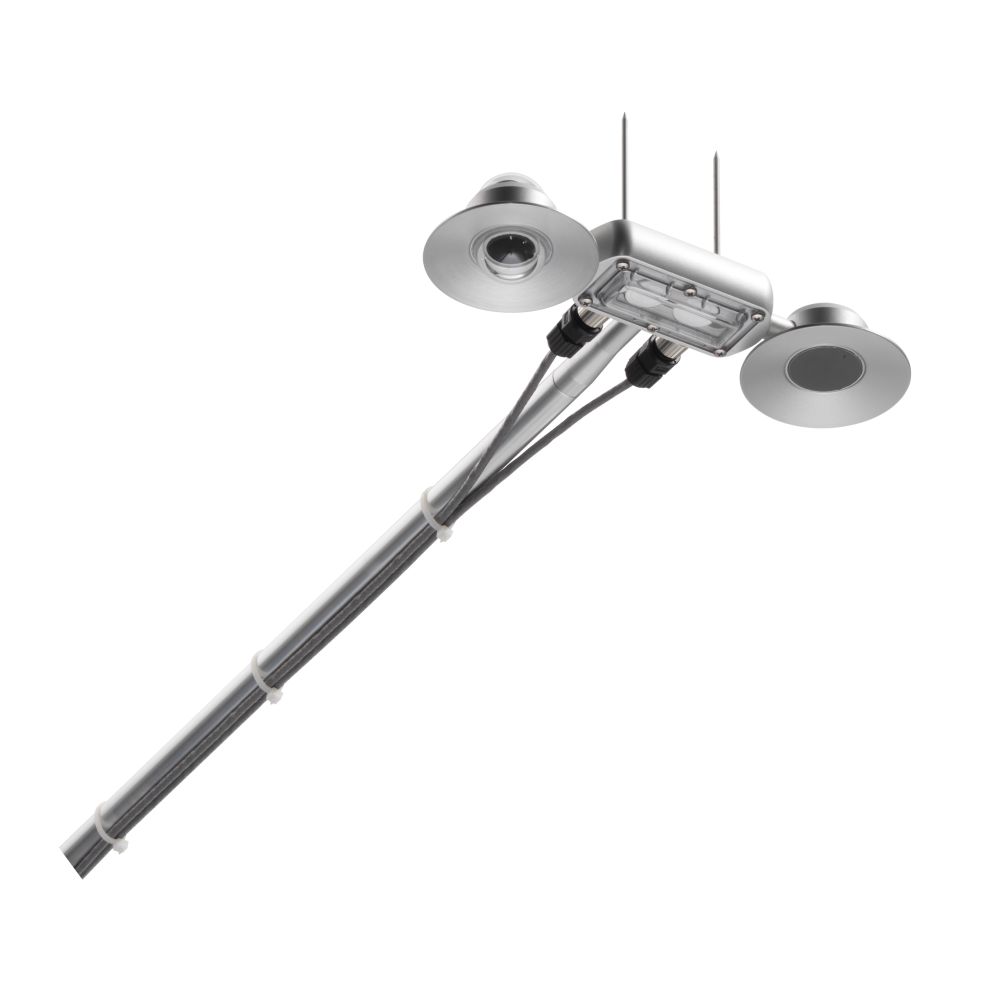

    LPNET14 Four-Component Net Radiation Sensor

     The LPNET14 is a four-component net radiometer designed to measure net radiation between 0.3 m and 45 m.

     The LPNET 14 consists of two short-wave radiations (one for measuring global radiation Esw and the other for measuring solar reflected radiation Esw) and two long-wave radiations (one for measuring infrared radiation emitted by EFIR in the sky and the other for measuring infrared radiation emitted by EFIR on the ground). Using two pyrometers to make measurements requires measuring temperature. In fact, far infrared light is obtained by measuring the output of thermopile and understanding the temperature of instrument. The LPNET14 net radiometer is suitable for outdoor use in all weather conditions and requires little maintenance.


    Technical parameters:

    Measurement range: HF: 0~2000W/㎡

             Long wave: -300 ° 300W/㎡

    Spectral range: 300~2800nm

             Long wave 4500~45000nm

    Sensitivity: 5-15 V/W/㎡ (short wave)

           5-10 V/W/㎡ (long wave)

    Response time: 20s (95%)

    Instability (annual variation): 1%

    Nonlinear error: 1%@shortwave 0~1000W/㎡; longwave-250~250W/㎡

    Temperature response: 4%(-10 ° C to 40 ° C)

    Direction error: 20W/m2 (80, 1000W/㎡)

    Angle of view: short wave radiation sensor 180; long wave radiation sensor downward 160°

    Built-in temperature sensor: NTC temperature sensor

    Internal resistance: 33 ~45Ω

    Protection class: IP67

    Output: 4 voltage outputs

    Weight: 2kg

    Working environment: temperature-40℃~+80℃; humidity: 0~100%RH
