Product DescriptionCompany Info.<>
- Model:
- CR1000Xe
- Processing customization:
- Yes
- Quality assurance:
- 1
- Types:
- High-speed data acquisition system

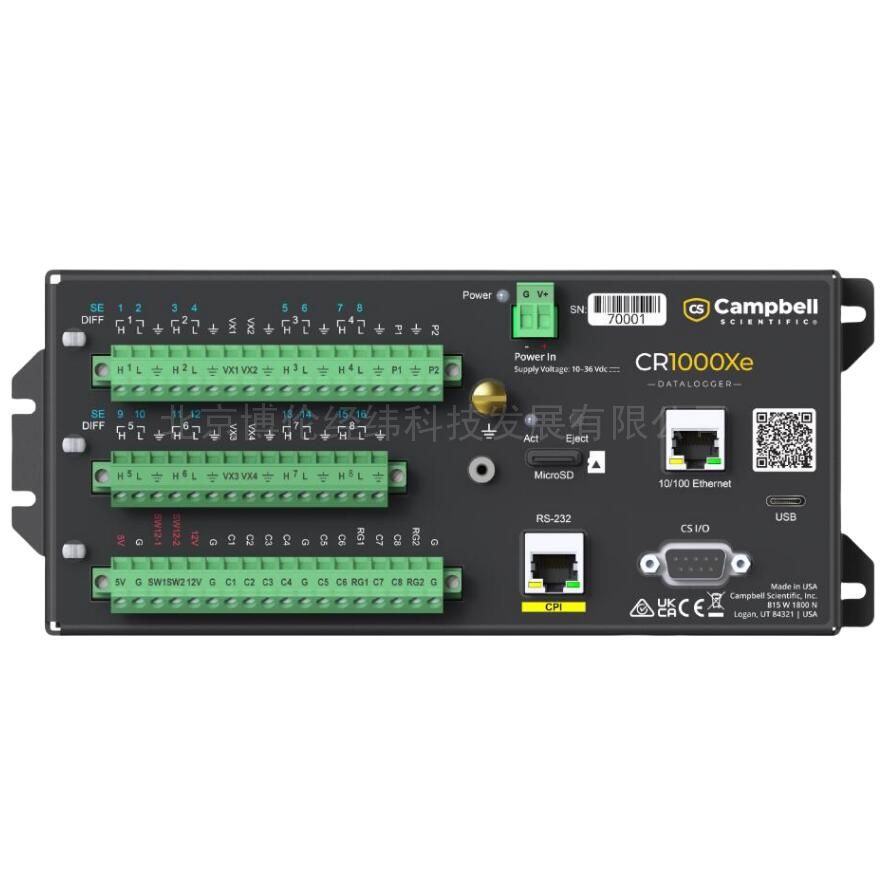

Cambpell CR1000Xe Data CollectorCR 1000Xe is an upgraded version of CR 1000X, CR 1000Xe is equipped with USB-C interface, C1-C8 all support standard Modbus RS232/485 communication, support 10-36V wider DC power supply, scan speed record up to 1000Hz (100MHz), the newCR 1000Xe data collector can provide stable and reliable measurement and control for various applications. It can provide system control, data acquisition, analysis and transmission for automatic weather stations, air quality monitoring stations, hydrological stations, solar resource assessment and monitoring stations, geological and structural monitoring. The sealed device shields RF interference and has functions such as precision clock, BASIC programming language, data processing and analysis.
CR1000Xe low power consumption, support analog and digital sensors, support cable, WiFi, 5G/4G, satellite, HF radio and other data transmission methods. Its standard working temperature is-40℃~70℃, and the extended working temperature can reach-55℃~85℃.
technical index
Ø * Large scanning rate:1000Hz
Ø Shell material: Electroplated aluminum alloy
Ø Analog inputs:16 single-ended or 8 differential pairs (independently configurable)
Two analog inputs measure4-20 mA or 0-20 mA current signals.
Four analog inputs provide pulsed, digitalI/O functionality
Ø Analog Input Limit:± 5000mV

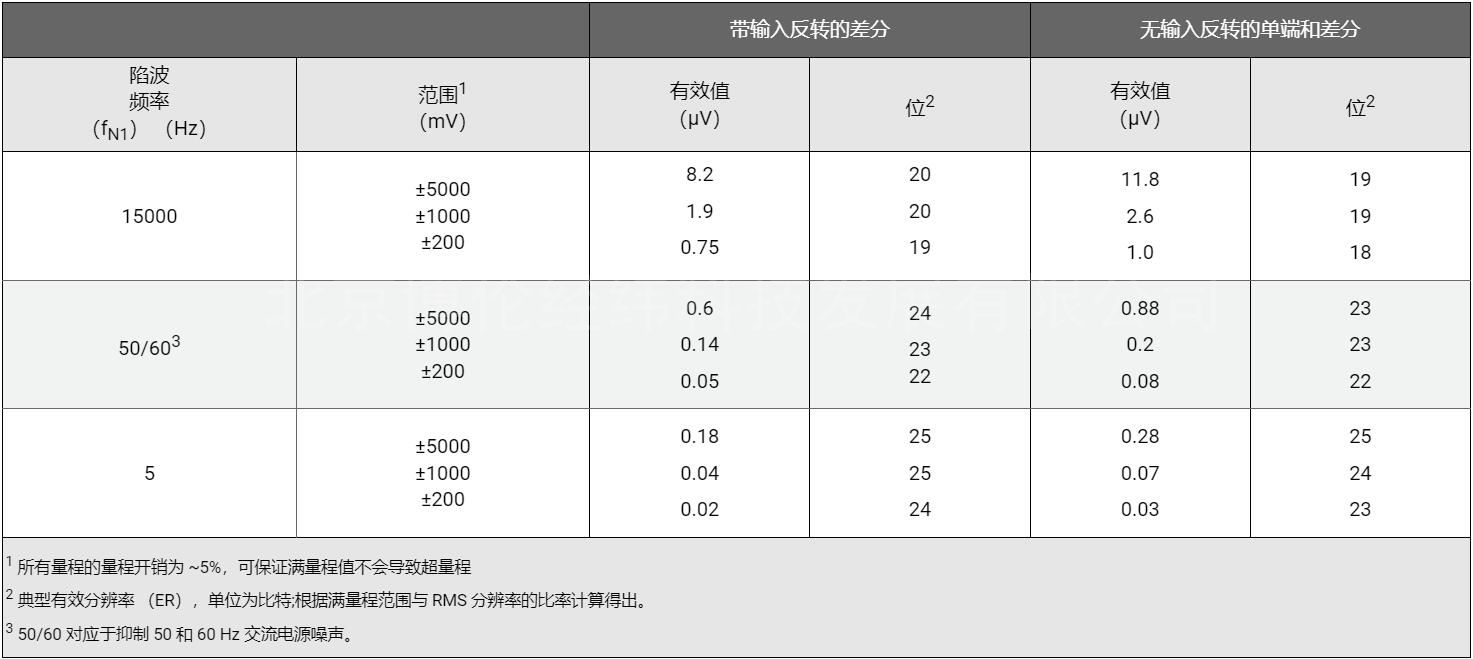

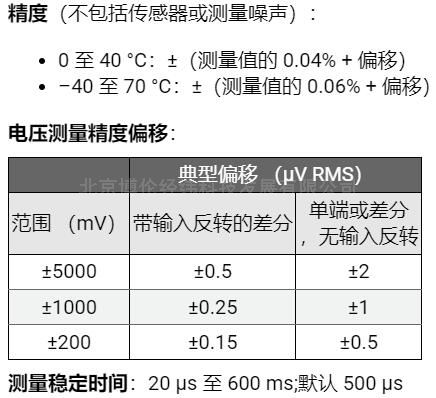

Ø Analog Voltage Accuracy: Accuracy specifications do not include sensor or measurement noise.
±(0.04% x measurement + offset) 0~+40℃
±(0.06% x measurement + offset)-40~+70℃
±(0.08% x measurement + offset)-55~+85℃ (extended temperature range)
Ø Pulse counters:10 (P1-P2 and C1-C8)
Ø Voltage excitation channels:4 (VX1-VX4)
Ø * Large source current/sink current:± 40mA (voltage excitation);50 mA (regulated voltage 3.3V or 5V)
Ø ADC:24 Bit
Ø Digital signalI/O: 8 configurable channels (C1-C8) for digital input and output. Includes status high/low, pulse width modulation, external interrupt, edge timing, switching pulse count, high frequency pulse count, UART, RS-232, RS-485, SDM, SDI-12, I2C and SPI serial communication functions. For some functions, the ports can be configured in pairs to 5V or 3.3V logic levels.
Ø Communication ports:Ethernet, RS-232, RS-485,RS-422,CS I/O,CPI,USB-C
Ø Data Storage Slot:MircroSD
Ø Switch12V: 2-way panel terminal, CS I/O 8 pin added
Ø Input voltage:10 - 36Vdc
Ø Real-time clock accuracy: annual error± 3 minutes (optional GPS module correction to± 10μ s)
Ø Network protocols:Ethernet,PPP,RNDIS,ICMP/Ping,Auto-IP (APIPA) ,IPv4,IPv6,UDP,TCP,TLS(v1.2),DNS,DHCP
,SLAAC,Telnet,HTTP(S), SFTP, FTP(S), POP3/TLS, NTP, SMTP/TLS, SNMPv3, CS I/O IP, MQTT(S)
Ø Communication protocols:CPI,PakBus,SDM,SDI-12,Modbus,TCP,DNP3,UDP,NTCIP,NMEA 0183,I2C,SPI
Ø Battery-powered SRAM forCPU and data storage: 4MB
Ø Data storage:4MB SRAM + 72MB flash memory (expandable up to 16 gigabytes via MicroSD card * )
Ø Non-operating current (average):< 1.5mA (@12Vdc)
Ø Operating current (average): 1.1 mA (1 Hz sweep@24Vdc );1.7 mA (1 Hz sweep@12Vdc )
Ø Operating current (average): 57 mA (20 Hz sweep@12 Vdc)
Ø size: 23.8 x 10.1 x 6.2 cm
Ø Weight: 0.86kg
Ø Working temperature: -40~+70℃ (standard); -55°- +85℃ (extended) non-condensation environment
